Western Sydney incinerator plume at 13:03 on Thu, 21 Sep 2017
Estimated concentration of oxides of nitrogen (μg/m3):

Maximum25.7
Mount Vernon1.5
Cecil Park1
Kemps Creek Public School1
Austral Public School0.6
Austral0.6
Minchinbury0.4
Eastern Creek0.4
Emmaus Catholic College, Kemps Creek0.4
Les Powell School0.4
West Hoxton0.3
Middleton Grange0.3
Trinity Catholic Primary, Kemps Creek0.2
Elizabeth Hills0.2
Carnes Hill0.2
Cecil Hills0.2
Colyton Public School0.2
Erskine Park High School0.2
Erskine Park0.2
Hoxton Park0.2
Kemps Creek0.2
Cecil Hills High School0.2

Click on a place name above for full details.



Plume Plotter on Facebook/Twitter

Weather data provided by
Weather Underground

snapshot

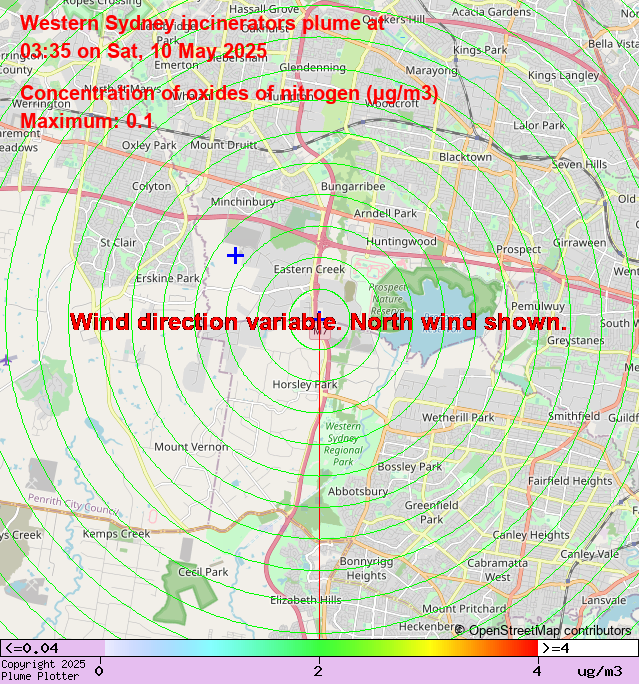

The map shows the distribution of pollution. The key below shows the concentration of oxides of nitrogen at each location.
Pointing mouse at DETAILS shows concentration of all pollutants, using "official" emission rates from the incinerator application.
Clicking on DETAILS shows concentration of all pollutants in more detail in a new window.
Maximum pollution in the map area is shown on right, with amount of oxides of nitrogen.
Weather is obtained automatically.
Auto display shows values from 1%-100% of the maximum, using full range of colours.
Show using new settings or revert to default settings.
SNAP produces snapshot of current plume plot as a single image file.
Weather information is updated every few minutes. Click show to update.
1g = 1000mg
1mg = 1000μg
1μg = 1000ng
1ng = 1000pg
1pg = 1000fg
