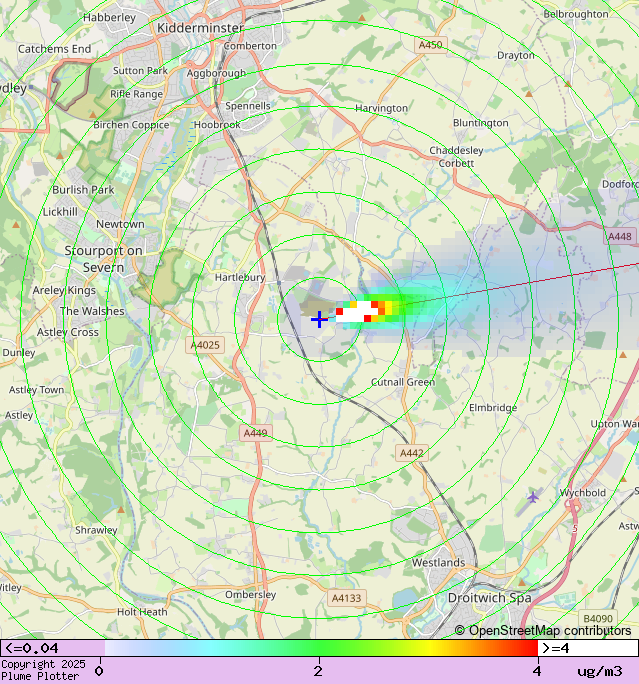

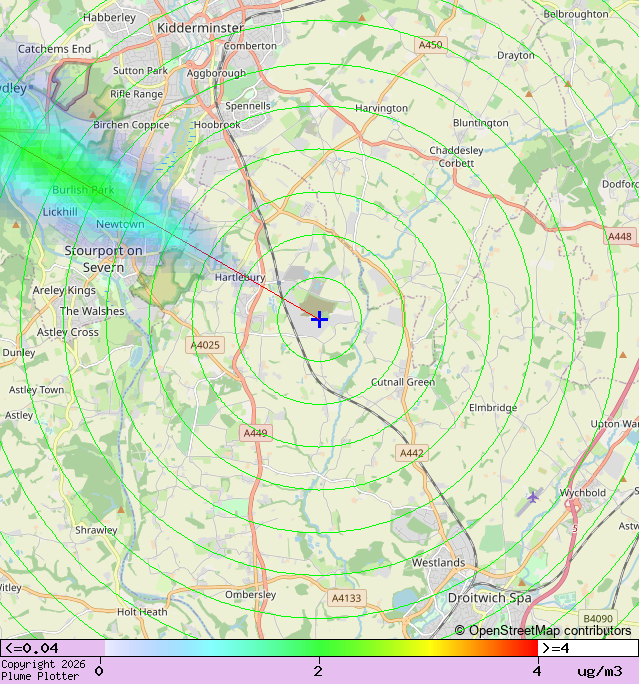

The map shows the (predicted) current state of pollution from the proposed incinerator at Hartlebury, Worcestershire.

The red line shows wind direction. Green rings show distance (km). Colours show concentration of oxides of nitrogen at ground level. Maximum: 9.17 µg/m3. This is the concentration at the location that is most polluted by the plume.

Breakdown of pollutants at most polluted location (green = background, red = added by plume):

Oxides of nitrogen
Sulphur dioxide
Carbon monoxide
Particulates PM10
Particulates PM2.5
Hydrogen chloride
VOCs
Mercury
Cadmium and thallium
Other metals
BaP
Dioxins and furans

Oxides of nitrogen
Sulphur dioxide
Carbon monoxide
Particulates PM10
Particulates PM2.5
Hydrogen chloride
VOCs
Mercury
Cadmium and thallium
Other metals
BaP
Dioxins and furans

Concentration
per m3
Background
(annual mean)
Plume
Oxides of nitrogen27.7 µg9.17 µg(33%)
Sulphur dioxide3.5 µg2.29 µg(66%)
Carbon monoxide265 µg2.29 µg(1%)
Particulates PM1022.2 µg459 ng(2%)
Particulates PM2.514.2 µg153 ng(1%)
Hydrogen chloride560 ng459 ng(82%)
Hydrogen flourideN/A45.9 ng
VOCs2.29 µg459 ng(20%)
AmmoniaN/A459 ng
Mercury450 pg2.29 ng(510%)
Cadmium and thallium3.64 ng2.29 ng(63%)
Other metals171 ng22.9 ng(13%)
BaP140 pg91.7 pg(66%)
Dioxins and furans23.3 fg4.59 fg(20%)
Display parameters
Zoom:
+
Area:
Centred
Downwind
Emissions:
Planned
Latest weather data
Wind 5.8 mph (2.6 m/s) from 240°. Cloud cover: 4/10. Temp: 15°C. Pressure: 1016 mb. Data from Birmingham airport at 14:20.
