Killoch Plume Plotter
Killoch incinerator plume
at 12:50 on Sun, 23 Jun 2024
MAIN
PLACES
PLEASE WAIT...
map
Map
MAIN
PLACES

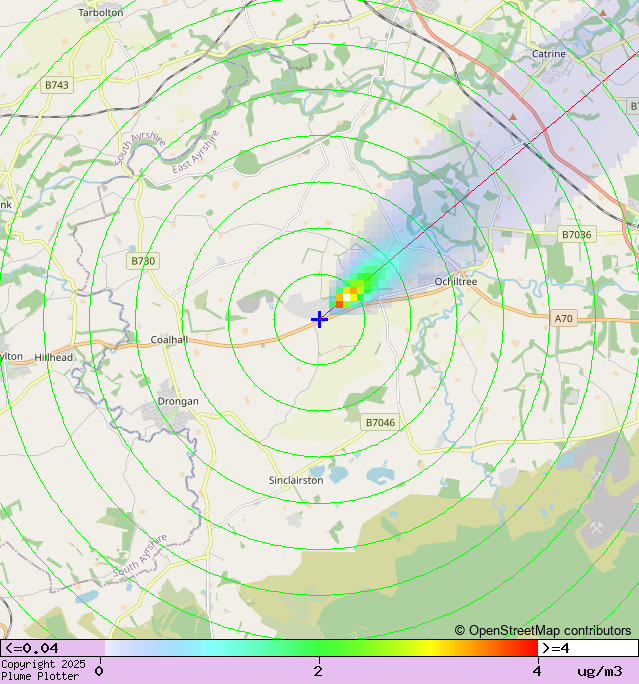

The map shows the (predicted) current state of pollution from the proposed incinerator at Killoch, East Ayrshire.

The red line shows wind direction. Green rings show distance (km). Colours show concentration of oxides of nitrogen at ground level. Maximum: 4.62 µg/m3. This is the concentration at the location that is most polluted by the plume.

Breakdown of pollutants at most polluted location (green = background, red = added by plume):

Oxides of nitrogen
Sulphur dioxide
Carbon monoxide
Particulates
Hydrogen chloride
TOC
Hydrogen flouride
Ammonia
Cadmium and Thallium
Mercury
Other metals
PaHs
Dioxins and furans
PCBs

Oxides of nitrogen
Sulphur dioxide
Carbon monoxide
Particulates
Hydrogen chloride
TOC
Hydrogen flouride
Ammonia
Cadmium and Thallium
Mercury
Other metals
PaHs
Dioxins and furans
PCBs

Concentration
per m3
Background
(annual mean)
Plume
Oxides of nitrogen4.79 µg4.62 µg(96%)
Sulphur dioxide3.38 µg1.16 µg(34%)
Carbon monoxide177 µg1.92 µg(1%)
Particulates11.1 µg193 ng(2%)
Hydrogen chloride710 ng231 ng(33%)
TOC230 ng385 ng(167%)
Hydrogen flouride2.35 µg39.1 ng(2%)
Ammonia3.18 µg385 ng(12%)
Cadmium and Thallium570 pg771 pg(135%)
Mercury2.8 ng771 pg(28%)
Other metals130 ng11.6 ng(9%)
PaHs980 pg7.7 pg(1%)
Dioxins and furans33 fg2.31 fg(7%)
PCBs129 pg193 pg(150%)
Display parameters
Zoom:
+
Area:
Centred
Downwind
Emissions:
Planned
Latest weather data
Wind 12.8 mph (5.7 m/s) from 260°. Cloud cover: 4/10. Temp: 16°C. Pressure: 1019 mb. Data from Prestwick airport at 12:50.
