Matraville Plume Plotter
Matraville incinerator plume
at 08:00 on Mon, 26 Feb 2024
MAIN
PLACES
PLEASE WAIT...
map
Map
MAIN
PLACES

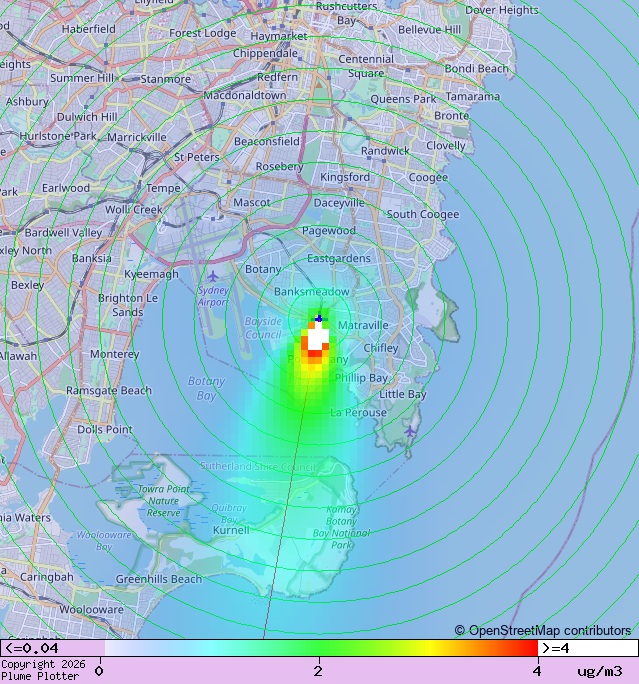

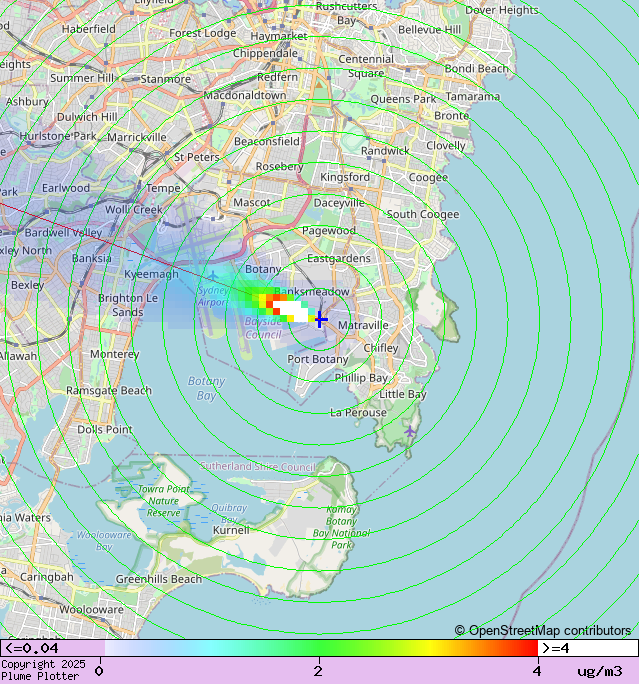

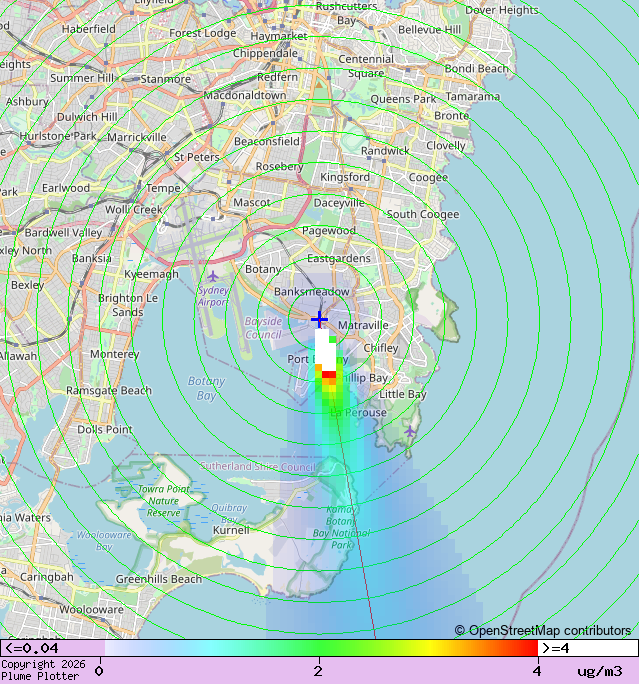

The map shows the (predicted) current state of pollution from the proposed incinerator at Sydney, NSW.

The red line shows wind direction. Green rings show distance (km). Colours show concentration of oxides of nitrogen at ground level. Maximum: 7.47 µg/m3. This is the concentration at the location that is most polluted by the plume.

Breakdown of pollutants at most polluted location (green = background, red = added by plume):

Oxides of nitrogen
Particulates
Sulphur dioxide

Oxides of nitrogen
Particulates
Sulphur dioxide

Concentration
per m3
Background
(annual mean)
Plume
Oxides of nitrogen23 µg7.47 µg(32%)
Particulates19 µg374 ng(2%)
TOCN/A374 ng
Hydrogen chlorideN/A374 ng
Hydrogen flourideN/A37.4 ng
Sulphur dioxide3 µg1.87 µg(62%)
Carbon monoxideN/A1.87 µg
Cadmium and thalliumN/A1.87 ng
MercuryN/A1.87 ng
Other metalsN/A18.7 ng
Dioxins and furansN/A3.74 fg
Display parameters
Zoom:
+
Area:
Centred
Downwind
Emissions:
Planned
Latest weather data
Wind 14.8 km/h (4.1 m/s) from 310°. Cloud cover: 0/10. Temp: 22°C. Pressure: 1013 mb. Data from Sydney International airport at 08:00.
