Usk Plume Plotter
Usk incinerator plume
at 19:50 on Thu, 28 Mar 2024
MAIN
PLACES
PLEASE WAIT...
map
Map
MAIN
PLACES

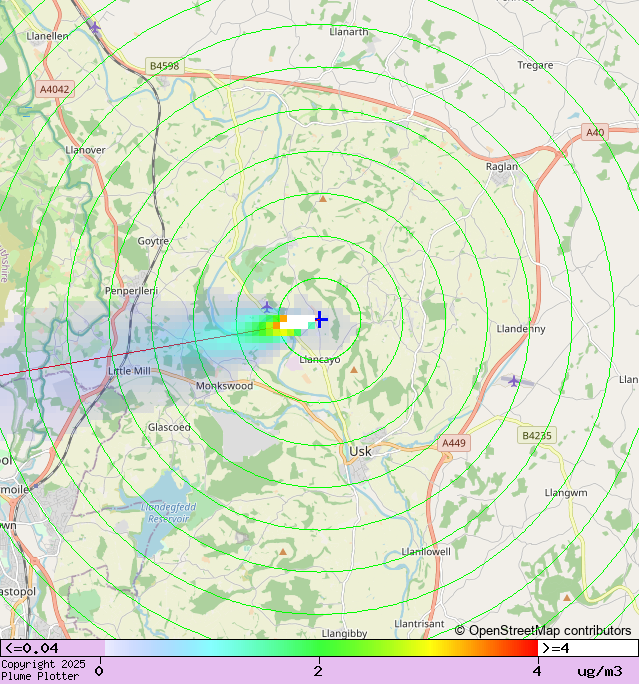

The map shows the (predicted) current state of pollution from the proposed incinerator at Trostrey Court Farm.

The red line shows wind direction. Green rings show distance (km). Colours show concentration of oxides of nitrogen at ground level. Maximum: 62.2 µg/m3. This is the concentration at the location that is most polluted by the plume.

Breakdown of pollutants at most polluted location (green = background, red = added by plume):

Oxides of nitrogen
Particulates PM10
Particulates PM2.5
Carbon monoxide
TOC
Cadmium and thallium
Mercury
Other metals
Dioxins and furans
PAHs
PCBs

Oxides of nitrogen
Particulates PM10
Particulates PM2.5
Carbon monoxide
TOC
Cadmium and thallium
Mercury
Other metals
Dioxins and furans
PAHs
PCBs

Concentration
per m3
Background
(annual mean)
Plume
Oxides of nitrogen6.3 µg62.2 µg(987%)
Particulates PM1012 µg452 ng(4%)
Particulates PM2.57.3 µg320 ng(4%)
Carbon monoxide91 µg4.52 µg(5%)
TOC160 ng904 ng(565%)
Cadmium and thallium100 pg2.71 ng(2713%)
Mercury1.2 ng2.71 ng(226%)
Other metals12.6 ng27.1 ng(215%)
Dioxins and furans1.5 fg5.27 fg(352%)
PAHs190 pg8.29 pg(4%)
PCBs24 pg0.332 fg(0%)
Display parameters
Zoom:
+
Area:
Centred
Downwind
Emissions:
Planned
Latest weather data
Wind 17.2 mph (7.7 m/s) from 260°. Cloud cover: 8/10. Temp: 8°C. Pressure: 976 mb. Data from Cardiff airport at 19:50.
