Waipa Plume Plotter
Waipa incinerator plume
at 09:00 on Wed, 11 Dec 2024
MAIN
PLACES
PLEASE WAIT...
map
Map
MAIN
PLACES

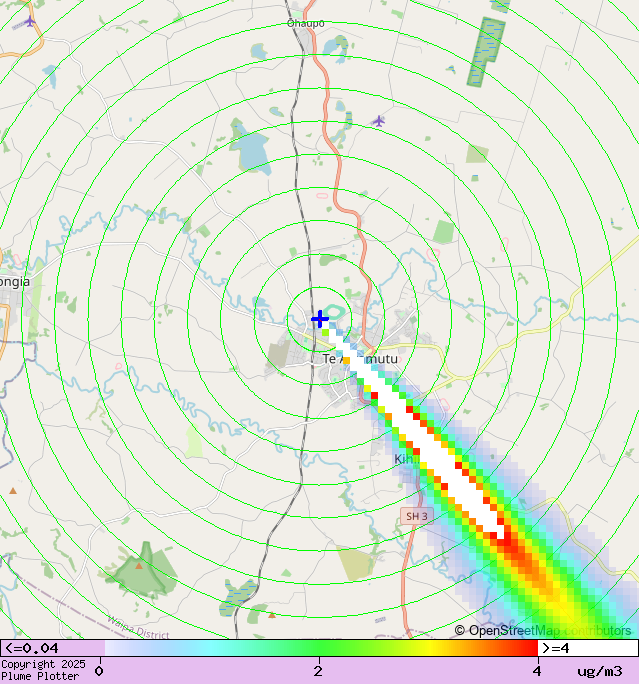

The map shows the (predicted) current state of pollution from the proposed incinerator at Te Awamutu, Waipa.

The red line shows wind direction. Green rings show distance (km). Colours show concentration of oxides of nitrogen at ground level. Maximum: 288 ng/m3. This is the concentration at the location that is most polluted by the plume.

Breakdown of pollutants at most polluted location (green = background, red = added by plume):

Oxides of nitrogen

Oxides of nitrogen

Concentration
per m3
Background
(annual mean)
Plume
Oxides of nitrogen4 µg288 ng(7%)
ParticulatesN/A19.4 ng
Sulphur dioxideN/A96 ng
Hydrogen chlorideN/A19.4 ng
Hydrogen fluorideN/A1.93 ng
Carbon monoxideN/A96 ng
MercuryN/A57.7 pg
Cadmium and thalliumN/A9.6 pg
Other metalsN/A19.2 pg
Dioxins and furansN/A0.0927 fg
Display parameters
Zoom:
+
Area:
Centred
Downwind
Emissions:
Planned
Latest weather data
Wind 1.8 km/h (0.5 m/s) from 80°. Cloud cover: 0/10. Temp: 16.2°C. Pressure: 1015 mb. Data from Hamilton Airport at 09:00.
